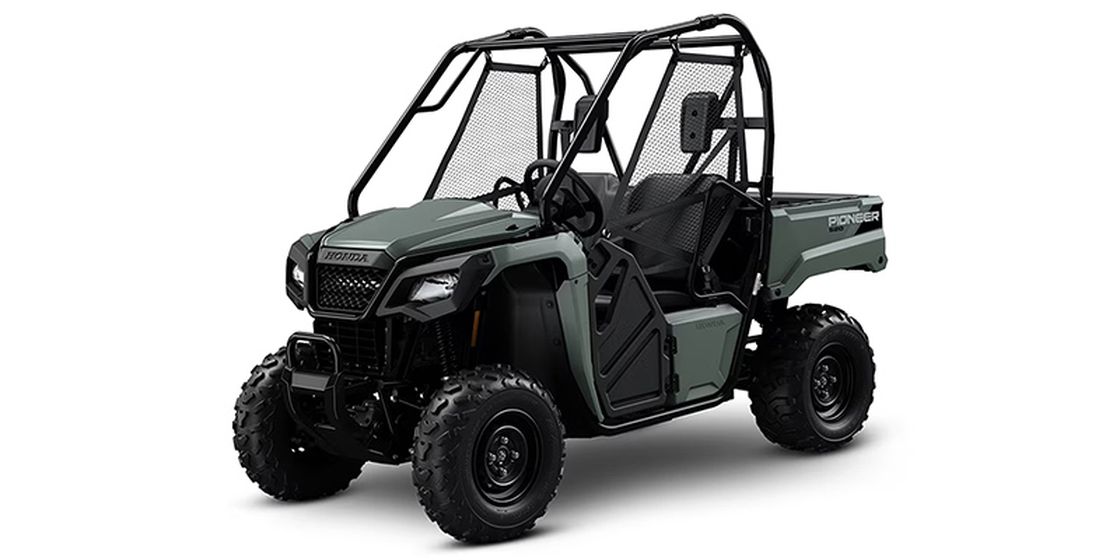

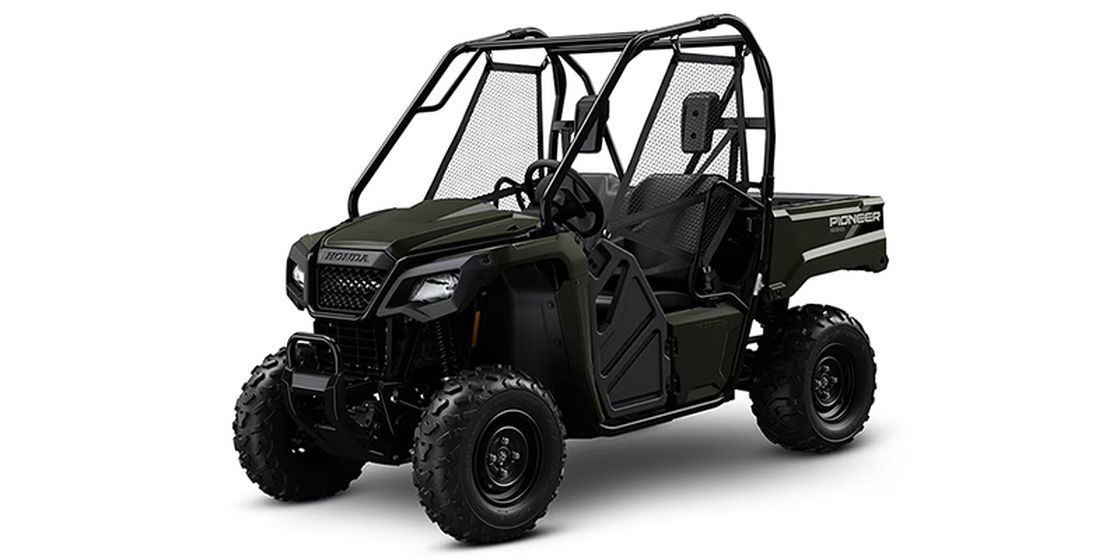

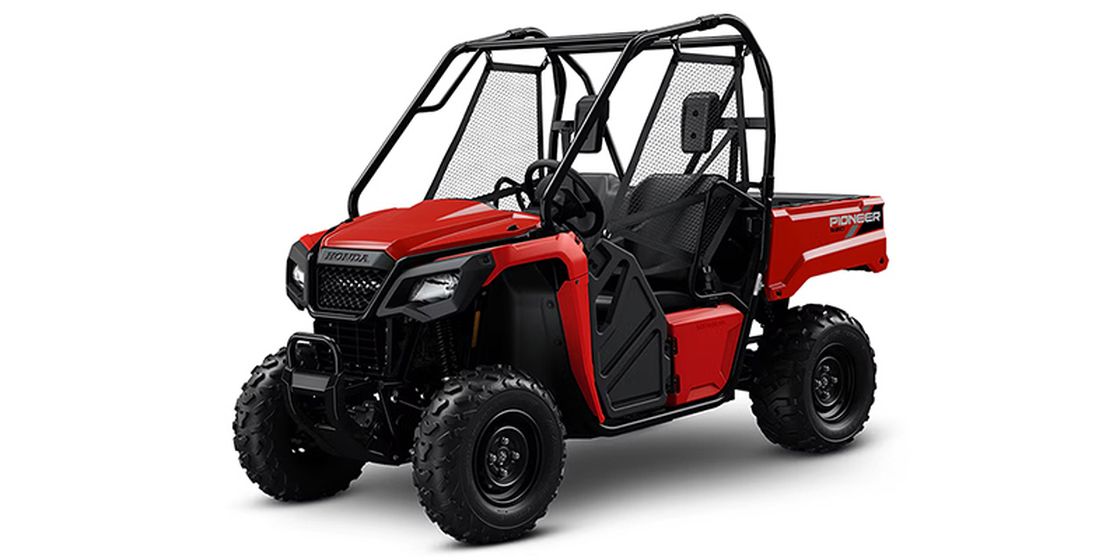

2026 Honda Pioneer 520 Base
/https://cdn.rollick.io/images/crs/400x200/2026_Honda_Pioneer520_Base.jpg)
/https://cdn.rollick.io/images/crs/gallery/Honda/2026_Honda_Pioneer520_Base_GRN-BF.jpg)
/https://cdn.rollick.io/images/crs/gallery/Honda/2026_Honda_Pioneer520_Base_GRN-C.jpg)
/https://cdn.rollick.io/images/crs/gallery/Honda/2026_Honda_Pioneer520_Base_RED.jpg)
/https://cdn.rollick.io/images/crs/400x200/2026_Honda_Pioneer520_Base.jpg){kind=small}
/https://cdn.rollick.io/images/crs/gallery/Honda/2026_Honda_Pioneer520_Base_GRN-BF.jpg){kind=small}
/https://cdn.rollick.io/images/crs/gallery/Honda/2026_Honda_Pioneer520_Base_GRN-C.jpg){kind=small}
/https://cdn.rollick.io/images/crs/gallery/Honda/2026_Honda_Pioneer520_Base_RED.jpg){kind=small}
Details
Previous Page
Page
1/1
Next Page
Engine
Engine Type
Single-Cylinder
Cylinders
1
Engine Stroke
4-Stroke
Cooling
Liquid
Valves
4
Valves Per Cylinder
4
Valve Configuration
OHV
Bore
96 mm.
Stroke
2.81 in.
Displacement
518 cc.
Compression Ratio
9.5:1
Starter
Electric
Fuel Requirements
Regular
Fuel Type
Gas
Fuel Injector
Yes
Fuel Injector Size
36 mm.
Carburetor
No
Carburetion Type
Fuel Injected
Speed Governor
No
Engine
Optional
Transmission
Transmission Type
Manual / Automatic Clutch
Number Of Speeds
5
Primary Drive (Rear Wheel)
Shaft
Reverse
Yes
Hi / Low Range
Yes
Primary Drive (Front Wheel)
Shaft
Dimensions & Weight
Length (inches)
105 in.
Width (inches)
50 in.
Height (inches)
71.2 in.
Length
8.75 ft.
Wet Weight
1060 lbs.
Technical specifications
Wheelbase
73 in.
Turning Radius
12.8 ft.
Ground Clearance
8.5 in.
Towing Capacity
1000 lbs.
Fuel Capacity
4.1 gal.
Fuel Capacity Reserve
1.1 gal.
Exterior
Frame
Steel
Body Material
Plastic
Chain Guard
No
Engine Case Guard
Yes
Brush Guard
Yes
Exhaust Guard
No
Radiator Guard
Yes
CV Boot Cover
Yes
Bash Plate (Front)
Yes
Bash Plate (Rear)
No
Skid Plate
Optional
A-Arm Skid Plate (Front)
Yes
Skid Plate
Optional
Rear Bumper
Optional
Skid Plate
Optional
A-Arm Skid Plate (Rear)
Yes
Front Bumper
Optional
Nerf Bars
Optional
Safety Flag
Optional
Suspension
Front Suspension Type
Independent Double Wishbone
Front Travel
5.8 in.
Front Adjustable Fork Pre-Load
No
Rear Suspension Type
Independent Double Wishbone
Rear Travel
5.9 in.
Rear Adjustable Shock / Spring Pre-Load
Yes
Number Rear Shock Absorbers
2
Rear Suspension Material
Steel
Wheels & Tires
Wheels Composition
Steel
Front Tire Diameter
24 in.
Rear Tire Diameter
24 in.
Tire Brand
Maxxis®
Front Tire Width
8
Front Wheel Diameter
12
Rear Tire Width
10
Rear Wheel Diameter
12
Front Tire (Full Spec)
Maxxis® 24 x 8-12
Rear Tire (Full Spec)
Maxxis® 24 x 10-12
Brakes
Front Brake Type
Dual Hydraulic Disc
Front Brake Diameter
7.9 in.
Front Brake Diameter
200 mm.
Rear Brake Type
Hydraulic Disc
Rear Brake Diameter
6.7 in.
Rear Brake Diameter
170 mm.
Seats
Seat Type
Bucket
Seat Material
Vinyl
Number Of Seats
2
Number Of Rows
1
Seating
Seat Height
27.7 in.
Seat Height
703.6 mm.
Instrumentation
Temperature Warning Type
Gauge
Fuel Level Warning Type
Gauge
Storage
Capacity
450 lbs.
Bed Length
25.9 in.
Bed Height
9.8 in.
Bed Width
38.7 in.
Bed Capacity
450 lbs.
Cargo Bed Tilt
Yes
Windshield Mounts
Optional
Other Mounts
Optional
Rack Rails
Optional
Rack Rails Location
Cargo Bed
Rear Rack
Optional
Other Mounts
Optional
Front Rack Storage
Optional
Front Rack Storage Material
Hard Vinyl
Front Rack Storage Trim
Plain
Other Storage
Optional
Front Rack Storage
Optional
Front Rack Storage Material
Vinyl
Front Rack Storage Trim
Plain
Plow Mount
Optional
Plow Mount
Optional
Storage Cover
Optional
Camouflage Trim
No
Windshield Mounts
Optional
Windshield Mounts
Optional
Audio & Communication
Satellite
No
Drive Line
Driveline Brand
TraxLok™
Driveline Type
Selectable 4X2 / 4X4
Number Of Driveline Modes
2
Rear Solid Axle
No
Differential Lock Location
Rear
Steering
Steering Type
Rack & Pinion
Towing & Hauling
Size
2 in.
Size X
5.1 cm.
Rear Hitch Type
Receiver
Draw Bar
Optional
Rear Hitch
Optional
Paint & Finish
Paint
Optional
Primary Color
Green
Metallic
No
Paint
Optional
Primary Color
Green
Metallic
No
Paint
Optional
Primary Color
Red
Metallic
No
Windscreen & Mirrors
Windshield
Optional
Height Adjustable
No
Windshield
Optional
Height Adjustable
No
Windshield
Optional
Height Adjustable
No
Rearview Mirrors
Optional
Rearview Mirrors
Optional
Convenience
Other Convenience
Optional
Other Convenience
Optional
Lights
Other Lights
Optional
Other Lights
Optional
Yard equipment
Plow
Optional
Blade Length
60 in.
Adjustable
Yes
Plow Actuation Up / Down
Power
