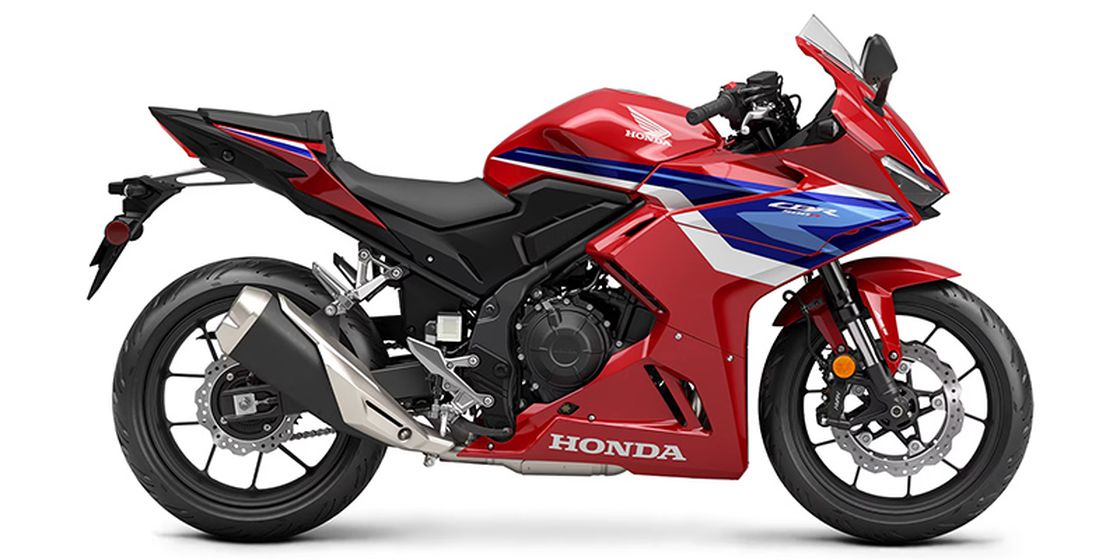

2025 Honda CBR500R ABS
2025 Honda CBR500R ABS
New From
$7,399
MSRP*

Details

Previous Page Page 1/1 Next Page
Engine
Engine Type
Parallel Twin
Cylinders
2
Engine Stroke
4-Stroke
Cooling
Liquid
Valves
8
Valves Per Cylinder
4
Valve Configuration
DOHC
Bore
67 mm.
Stroke
2.63 in.
Displacement
471 cc.
Compression Ratio
10.7:1
Starter
Electric
US Miles Per Gallon (Combined)
72
CAN Liters Per Kilometer (Combined)
3.3
Fuel Type
Gas
Turbocharged
No
Supercharged
No
Fuel Injector
Yes
Fuel Injector Size
34 mm.
Carburetor
No
Carburetion Type
Fuel Injected
Speed Governor
No
Transmission
Transmission Type
Manual
Number Of Speeds
6
Primary Drive (Rear Wheel)
Chain
Reverse
No
Dimensions & Weight
Length (inches)
81.9 in.
Width (inches)
30.1 in.
Height (inches)
45.1 in.
Length
6.82 ft.
Wet Weight
421 lbs.
Technical specifications
Wheelbase
55.5 in.
Ground Clearance
5.1 in.
Fuel Capacity
4.5 gal.
Exterior
Frame
Steel
Body Material
Plastic
Foot Peg Location
Driver and Passenger
Drive Shaft Guard
No
Fork Guards
Yes
Saddle Bag Guard
No
Belt Guard
No
Hand Guards
No
Brush Guard
No
Light Guard
No
Fuel Tank Cover
Yes
Pocket
No
Stand Type
Kick
Rear Fender
Optional
Exterior Guards
Optional
Tank Guard
Yes
Suspension
Front Suspension Type
Inverted Fork
Front Suspension Size
1.6 in.
Front Travel
4.7 in.
Front Adjustable Fork Pre-Load
Yes
Front Adjustable Rebound Damping
No
Front Central Suspension Strut
No
Front Suspension Brand Name
Showa® SFF-BP®
Steering Damper
No
Rear Suspension Type
Twin Sided Swing Arm
Rear Travel
4.7 in.
Rear Adjustable Shock / Spring Pre-Load
Yes
Rear Adjustable Rebound Damping
No
Number Rear Shock Absorbers
1
Rear Suspension Brand Name
Pro Link®
Rear Suspension Material
Aluminum
Wheels & Tires
Wheels Composition
Aluminum
Front Wheel Width
3.5 in.
Rear Wheel Width
4.5 in.
Tire Brand
Michelin®
Front Tire Width
120
Front Tire Aspect Ratio
70
Front Tire Speed Rating
W
Front Wheel Diameter
17
Rear Tire Width
160
Rear Tire Aspect Ratio
60
Rear Tire Speed Rating
W
Rear Wheel Diameter
17
Front Tire (Full Spec)
Michelin® Road 5: 120/70 R17 58W
Rear Tire (Full Spec)
Michelin® Road 5: 160/60 R17 69W
Wheels
Chromed
No
Brakes
Brake Brand Name
Nissin
Front Brake Type
Hydraulic Disc
Front Brake Diameter
11.7 in.
Front Brake Diameter
296 mm.
Rear Brake Type
Hydraulic Disc
Rear Brake Diameter
9.4 in.
Rear Brake Diameter
240 mm.
Seats
Seat Type
Two-Piece
Seat Material
Vinyl
Number Of Seats
2
Seating
Adjustable
No
Seat Location
Driver and Passenger
Seat Height
31.1 in.
Seat Height
790 mm.
Backrest Logo Plate
No
Seat Tail Cover
Optional
Instrumentation
Shift Light Type
Adjustable
Temperature Warning Type
Light
Fuel Level Warning Type
Gauge
Windscreen & Mirrors
Windshield Lowers
No
Height Adjustable
No
Audio & Communication
Satellite
No
Paint & Finish
Paint
Optional
Primary Color
Red
Metallic
No
Comments
Available In Assorted Colors
Yes
Storage
Tail Bag
Optional
Tail Bag Material
Vinyl
Tail Bag Trim
Plain
Other Mounts
Optional
Storage Cover
Optional
Convenience
Power Outlet
Optional
Previous Page Page 1/1 Next Page
