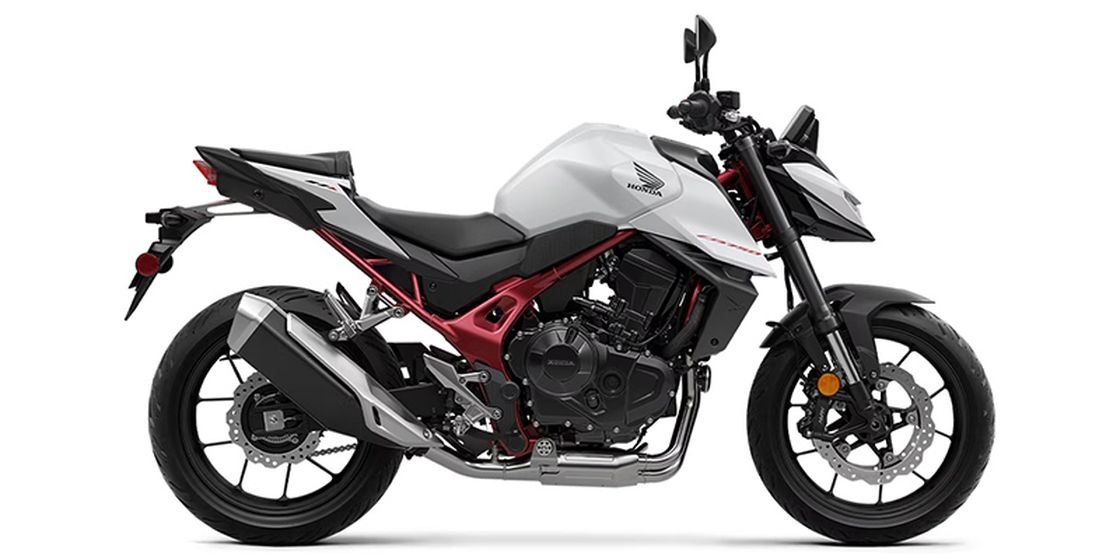

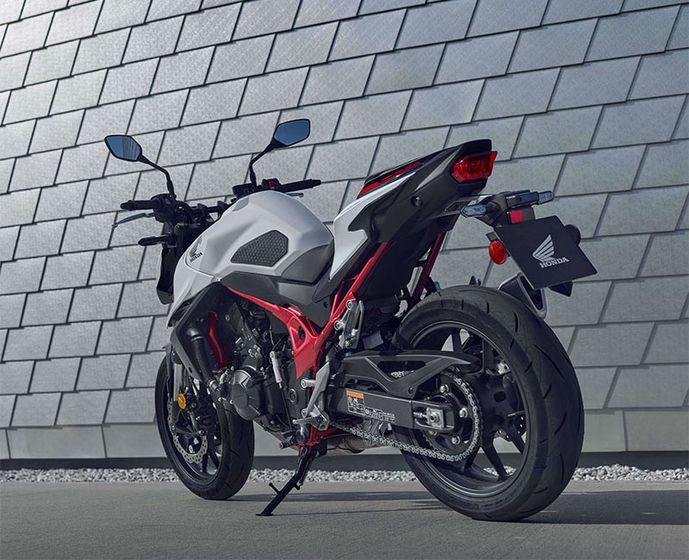

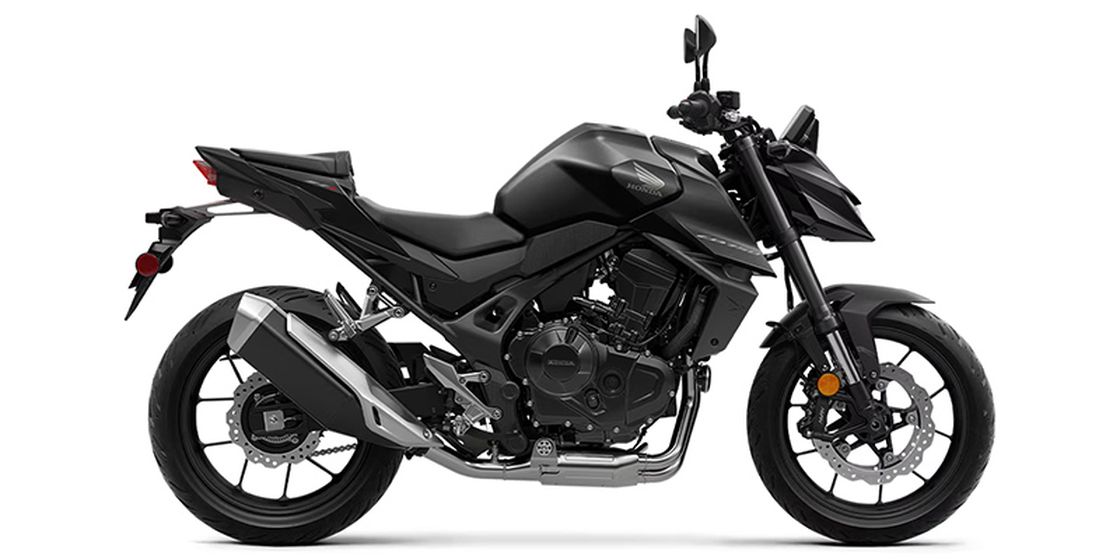

2025 Honda CB750 Hornet Base
/https://cdn.rollick.io/images/crs/400x200/2025_Honda_CB750Hornet_Base.jpg)
/https://cdn.rollick.io/images/crs/gallery/Honda/2025_Honda_CB750Hornet_Base_A1.jpg)
/https://cdn.rollick.io/images/crs/gallery/Honda/2025_Honda_CB750Hornet_Base_A2.jpg)
/https://cdn.rollick.io/images/crs/gallery/Honda/2025_Honda_CB750Hornet_Base_BLK.jpg)
/https://cdn.rollick.io/images/crs/gallery/Honda/2025_Honda_CB750Hornet_Base_WHT.jpg)
/https://cdn.rollick.io/images/crs/400x200/2025_Honda_CB750Hornet_Base.jpg){kind=small}
/https://cdn.rollick.io/images/crs/gallery/Honda/2025_Honda_CB750Hornet_Base_A1.jpg){kind=small}
/https://cdn.rollick.io/images/crs/gallery/Honda/2025_Honda_CB750Hornet_Base_A2.jpg){kind=small}
/https://cdn.rollick.io/images/crs/gallery/Honda/2025_Honda_CB750Hornet_Base_BLK.jpg){kind=small}
/https://cdn.rollick.io/images/crs/gallery/Honda/2025_Honda_CB750Hornet_Base_WHT.jpg){kind=small}
Details
Previous Page
Page
1/1
Next Page
Engine
Engine Brand Name
Honda
Engine Type
Parallel Twin
Cylinders
2
Engine Stroke
4-Stroke
Cooling
Liquid
Valves
8
Valves Per Cylinder
4
Valve Configuration
SOHC
Bore
87 mm.
Stroke
2.5 in.
Displacement
755 cc.
Compression Ratio
11.0:1?
Starter
Electric
Fuel Type
Gas
Turbocharged
No
Supercharged
No
Fuel Injector
Yes
Fuel Injector Size
46 mm.
Carburetor
No
Carburetion Type
Fuel Injected
Speed Governor
No
Transmission
Transmission Type
Manual
Number Of Speeds
6
Primary Drive (Rear Wheel)
Chain
Reverse
No
Dimensions & Weight
Length (inches)
82.4 in.
Width (inches)
30.8 in.
Height (inches)
42.7 in.
Length
6.87 ft.
Wet Weight
422 lbs.
Technical specifications
Wheelbase
55.9 in.
Ground Clearance
5.6 in.
Fuel Capacity
4 gal.
Fuel Capacity Reserve
0.8 gal.
Exterior
Frame
Steel
Body Material
Plastic
Foot Peg Location
Driver and Passenger
Drive Shaft Guard
No
Fork Guards
Yes
Saddle Bag Guard
No
Belt Guard
No
Hand Guards
No
Brush Guard
No
Light Guard
No
Fuel Tank Cover
Yes
Pocket
No
Stand Type
Kick
Foot Pegs
Optional
Foot Peg Location
Driver
Exterior Guards
Optional
Tank Guard
Yes
Suspension
Front Suspension Type
Inverted Fork
Front Suspension Size
1.6 in.
Front Travel
4.7 in.
Front Adjustable Fork Pre-Load
Yes
Front Adjustable Rebound Damping
No
Front Central Suspension Strut
No
Front Suspension Brand Name
Showa®
Steering Damper
No
Rear Suspension Type
Twin Sided Swing Arm
Rear Travel
5.1 in.
Rear Adjustable Shock / Spring Pre-Load
Yes
Rear Adjustable Rebound Damping
No
Number Rear Shock Absorbers
1
Rear Suspension Brand Name
Pro Link®
Rear Suspension Material
Aluminum
Wheels & Tires
Wheels Composition
Aluminum
Front Wheel Width
3.5 in.
Rear Wheel Width
3.5 in.
Tire Brand
Bridgestone®
Front Tire Width
120
Front Tire Aspect Ratio
70
Front Wheel Diameter
17
Rear Tire Width
180
Rear Tire Aspect Ratio
55
Rear Wheel Diameter
17
Front Tire (Full Spec)
Bridgestone® S22: 120/70-17
Rear Tire (Full Spec)
Bridgestone® S22: 180/55-17
Wheels
Chromed
No
Brakes
Brake Brand Name
Brembo Stylema®
Front Brake Type
Dual Hydraulic Disc
Front Brake Diameter
12.2 in.
Front Brake Diameter
310 mm.
Rear Brake Type
Hydraulic Disc
Rear Brake Diameter
9.4 in.
Rear Brake Diameter
240 mm.
Seats
Seat Type
Two-Piece
Seat Material
Vinyl
Number Of Seats
2
Seat
Optional
Seat Type
One-Piece
Seat Material
Vinyl
Seat Specifications
Optional
Number Of Seats
1
Seating
Adjustable
No
Seat Location
Driver and Passenger
Seat Height
31.3 in.
Seat Height
795 mm.
Backrest Logo Plate
No
Seat Tail Cover
Optional
Seat Tail Cover
Optional
Adjustable
No
Seat Location
Driver
Instrumentation
Temperature Warning Type
Gauge
Fuel Level Warning Type
Gauge
Windscreen & Mirrors
Windshield Lowers
No
Height Adjustable
No
Windshield
Optional
Windshield Lowers
No
Height Adjustable
No
Paint & Finish
Metallic
Yes
Paint
Optional
Primary Color
Black
Metallic
Yes
Paint
Optional
Primary Color
White
Metallic
Yes
Audio & Communication
Satellite
No
Storage
Tank Bag
Optional
Tank Bag Material
Vinyl
Tank Bag Trim
Plain
Hard Side Cases
Optional
Side Storage Mount
Optional
Lockable Storage
Optional
Side Case Mount
Optional
Side Storage Mount
Optional
Side Case Mount
Optional
Other Mounts
Optional
Tail Bag
Optional
Tail Bag Material
Vinyl
Tail Bag Trim
Plain
Other Mounts
Optional
Convenience
Heated Hand Grips
Optional
